| Name | Light Framing Industry Structural Steel Barn AISI Standard |
| Dimensions of Poultry Shed | 90mx12mx3m, Length x Width x eave height or as your requirements |
| Roof and wall material | thickness 50mm EPS sandwich panel, 0.5/0.5mm corrugated steel sheet |
| Design Common Norms of Poultry Shed | "Steel Design Code" (GB50017-2003) "Cold-formed steel structure technical specifications" (GB50018-2002) "Construction Quality Acceptance of Steel" (GB50205-2001) "Technical Specification for welded steel structure" (JGJ81-2002, J218-2002) "Technical Specification for Steel Structures of Tall Buildings" (JGJ99-98) |

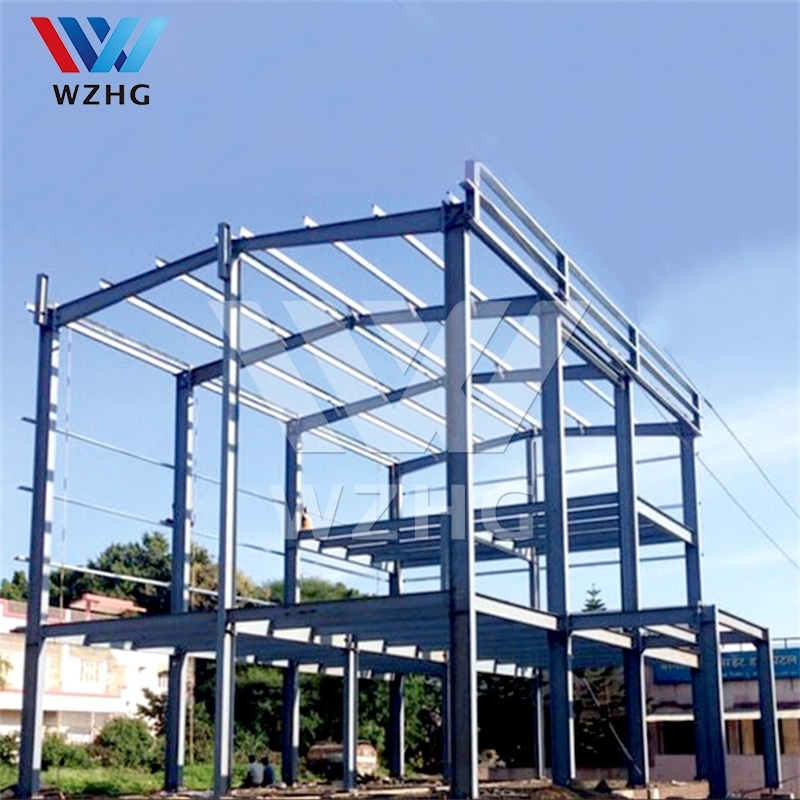

| Component and Characteristics of the Construction | The main frame (columns and beams) is made of H section steel, steel grade is Q235 or Q345 The envelop construction net is made of cold form C-style purlin The wall and roof are made of color steel board or sandwich panels Doors and windows can be designed at anywhere suit to different requests, and can sliding type or roll up type Ventilation could be by window or ventilator The light transfer zone could be added on the wall or roof with material sun glass board. |
| Connection Method | The columns are connected with the foundation by pre-embedding anchor bolt The beams and columns, beams and beams are connected with high intensity bolts |
| Construction Advantage | Could be designed according to different purpose and environment condition Long life span, could be more than 50 years Quick and easy install work and the more economic friendly Could be moved and recycle Strong seismic and wind resistance |

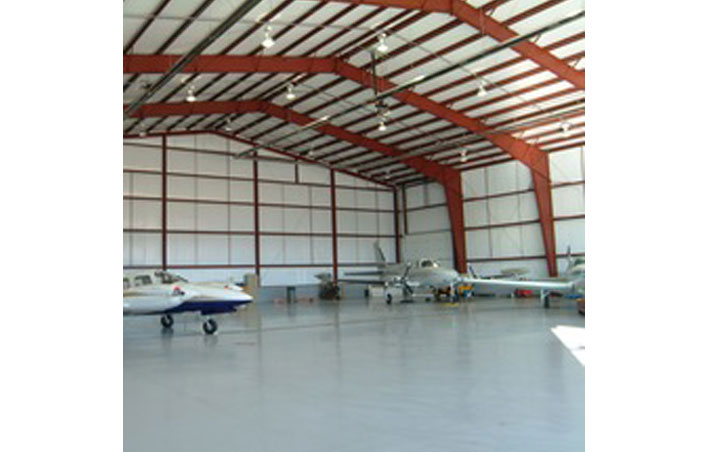

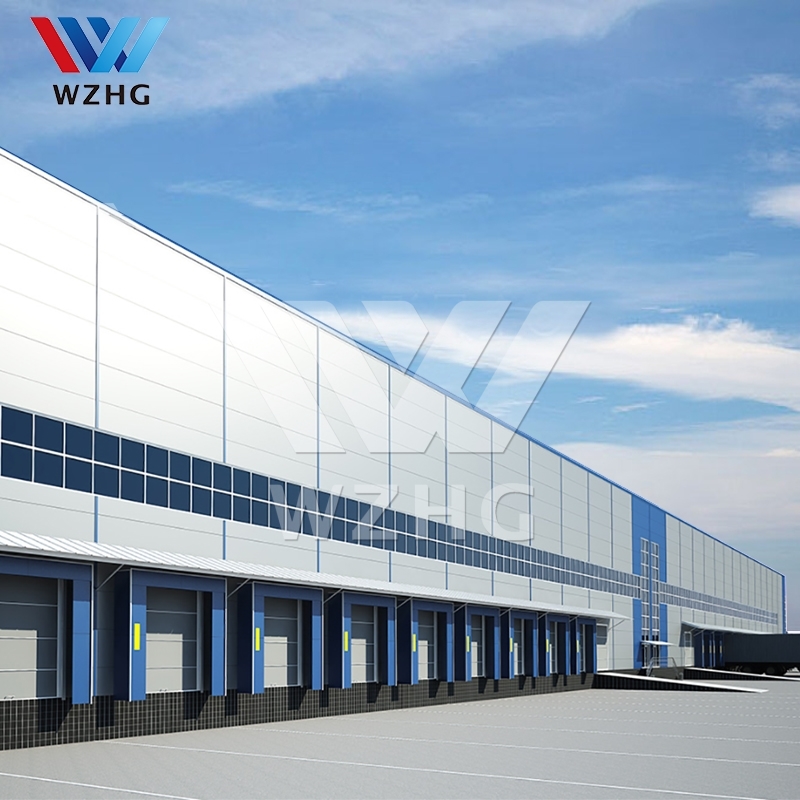

| Application | Workshop, warehouse, office buildings, supermarkets, logistic warehouses, showrooms, hangar, shelter, etc |
WZH Company Profile
Due to the following advantages, we get big projects from all over the world:
1. Group company: we have 9 subsidiaries which all specialized in producing steel structures in North China for more than 20years. And we have gained many hornors and reputation from our
government and customers.
2. Excellent sales team: All the sales staff have to intend our company training for 3months to learn our company culture, product information, and pratice sales skills etc. They can communicate
with customers very easily and answer basic technic questions themselves. Which will save too much time.
3. Professional design team: Over the years accumulated experience of engineering design, we training a group of outstanding professionals. we are always committed to the development and
application of new technology and new products, that also ensure our advantage in leading-edge technology.
Our head of design department is registered Associate Constructor, he has reponsible for many big projects, such as: Dubai Gymnasium, Dubai Lugger Hotel, Dubai Mediterranean Part
Apartment, Dubai Mifdif Apartment Building, Singapore Medical College etc. Our design team can provide us drawings, blueprints, decoration, installation, adjusting the design according to
customers and give reasonal suggestion for the project.
The mature project node and system design documents can ensure overall project quality, personality of the design, and satisfy customers' diversified needs.
4. After sales service: After we send the components to customer by sea, we can send our person to install or we can make online insturction for customer to install their buildings with no worries.
